Μονοφασικός μετρητής Smart Solis Solar Inverter
Νέο!

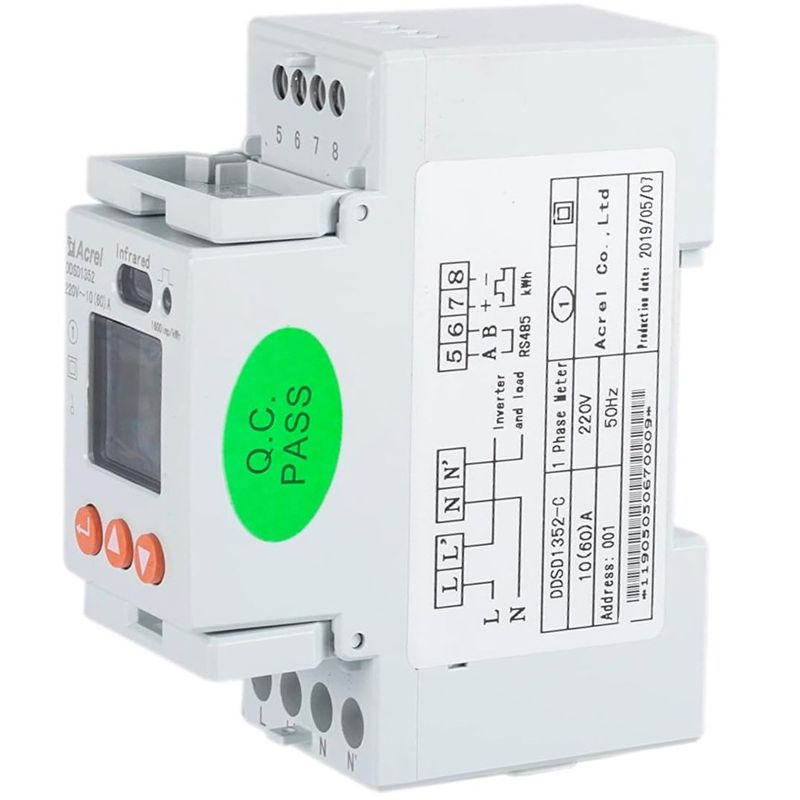

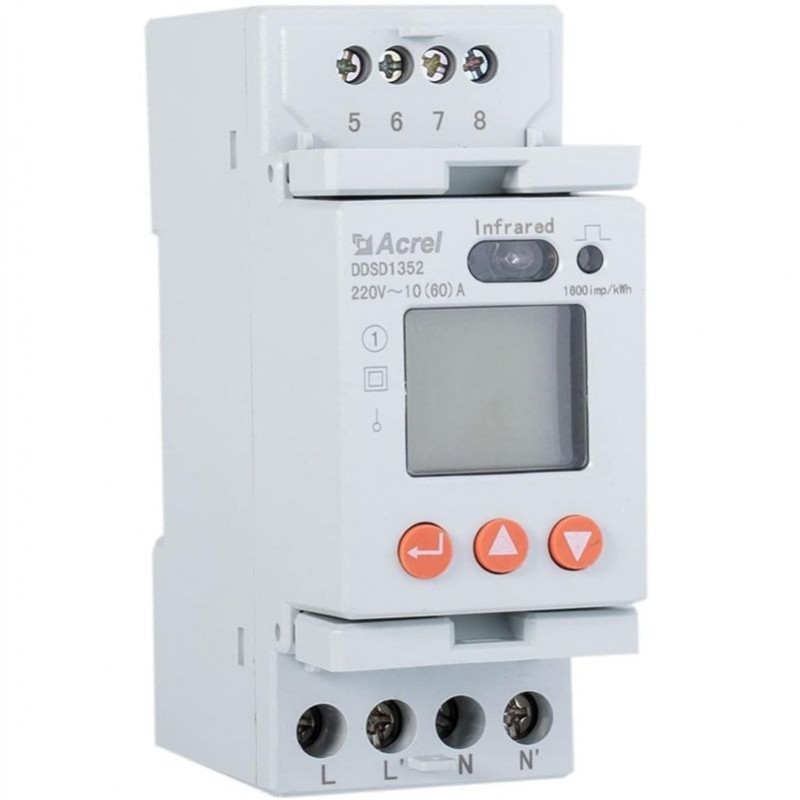

A one-phase DDSD1352 electricity meter can be used in all types of control systems, including SCADA.
It is distinguished by high accuracy, small dimensions, and easy installation. It is used for measuring and managing multiple electrical parameters, providing data for the previous 12 months, on the condition of harmonics, realizes remote switching and control with switching of
It is distinguished by high accuracy, small dimensions, and easy installation. It is used for measuring and managing multiple electrical parameters, providing data for the previous 12 months, on the condition of harmonics, realizes remote switching and control with switching of
input and relay output with the possibility of alarm notification.
Advantages
- Measurement of a wide range of parameters
- Easy parameter adjustment using 3 buttons
- Multi-tariff - four tariffs
- 4 time zones, 2 time interval channels with 14 intervals per day
- Voltage drop or over voltage warning
Technical data
- Input voltage: 220V AC
- Rated current: 10А
- Maximum current: 60А
- Accuracy class: 1
- Measuring range: 000000.00~99999999kWh
- Measurement parameters: voltage, current, active, reactive and power factor, power factor, frequency
- Constant: 1600imp/kWh
- Protocol: MODBUS-RTU
- Communication: Infrared
- Display: 8 Bit LCD
- Dimensions (LxHxW): 36х88х70mm
* Smart meter DDSD1352 is compatible with all 1P solar inverters SOLIS.
