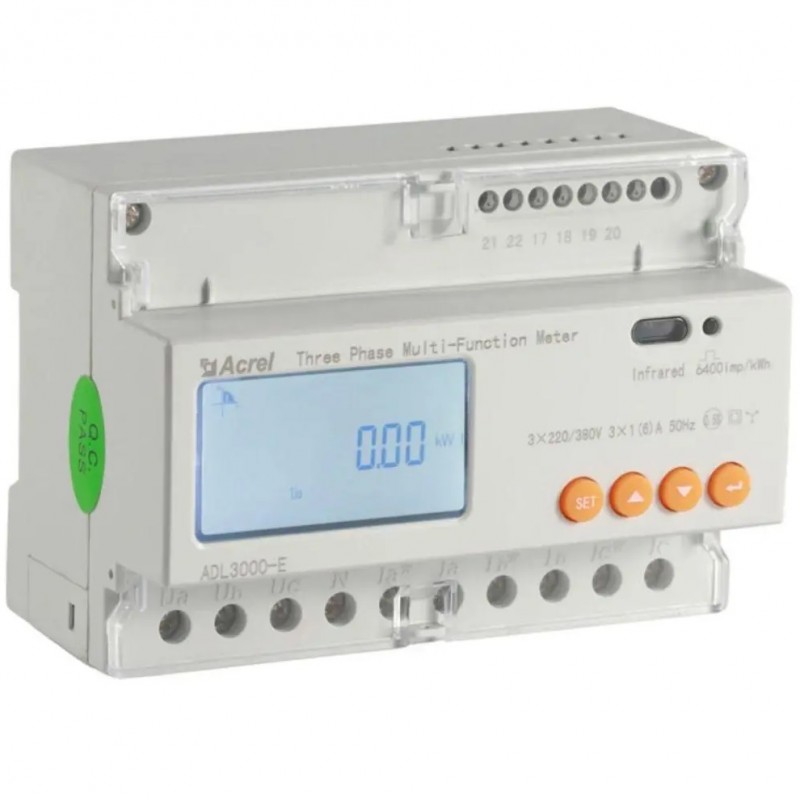

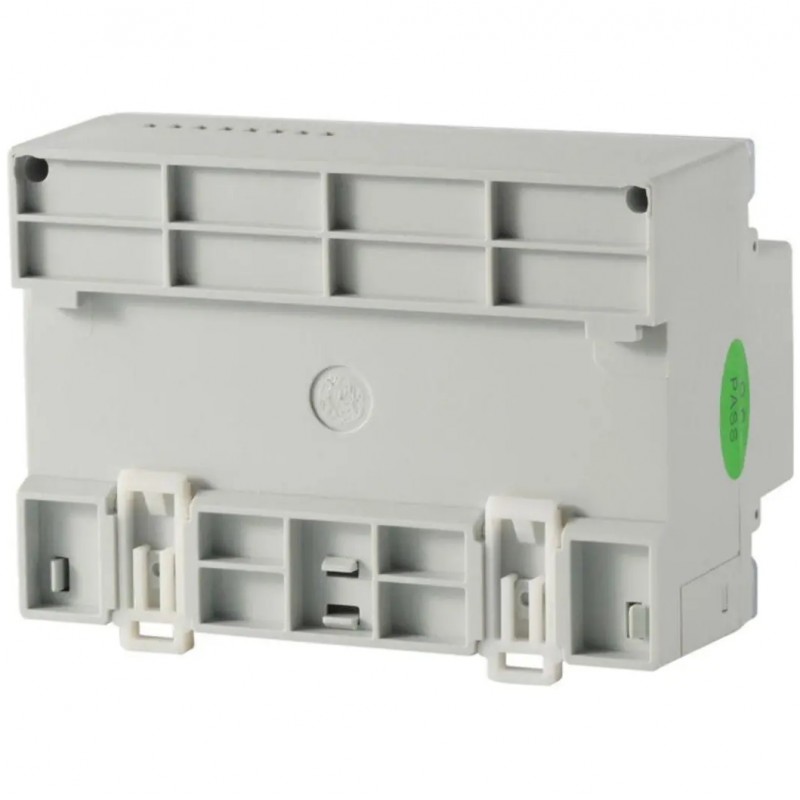

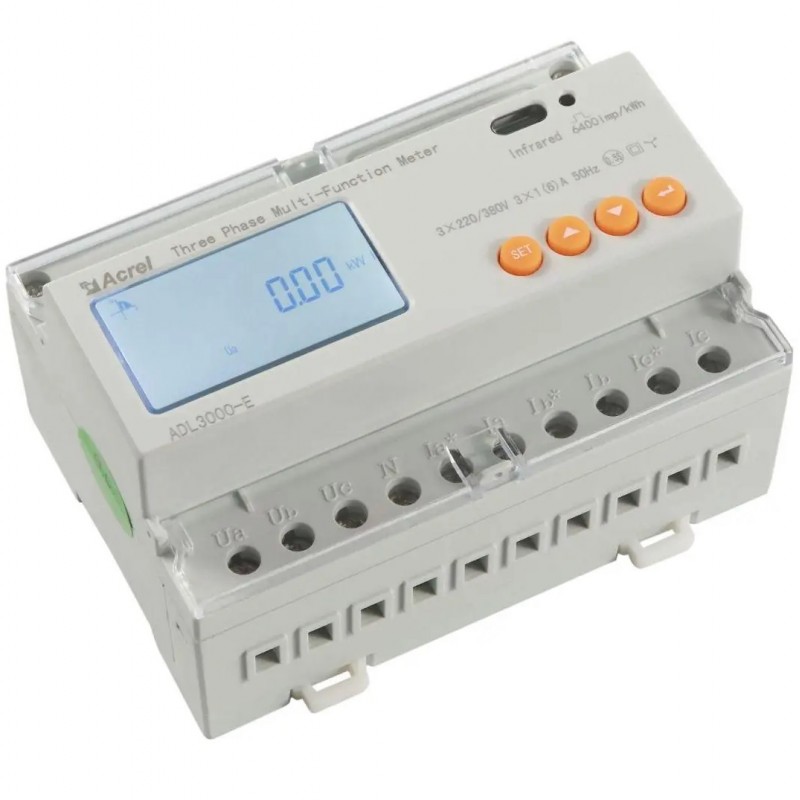

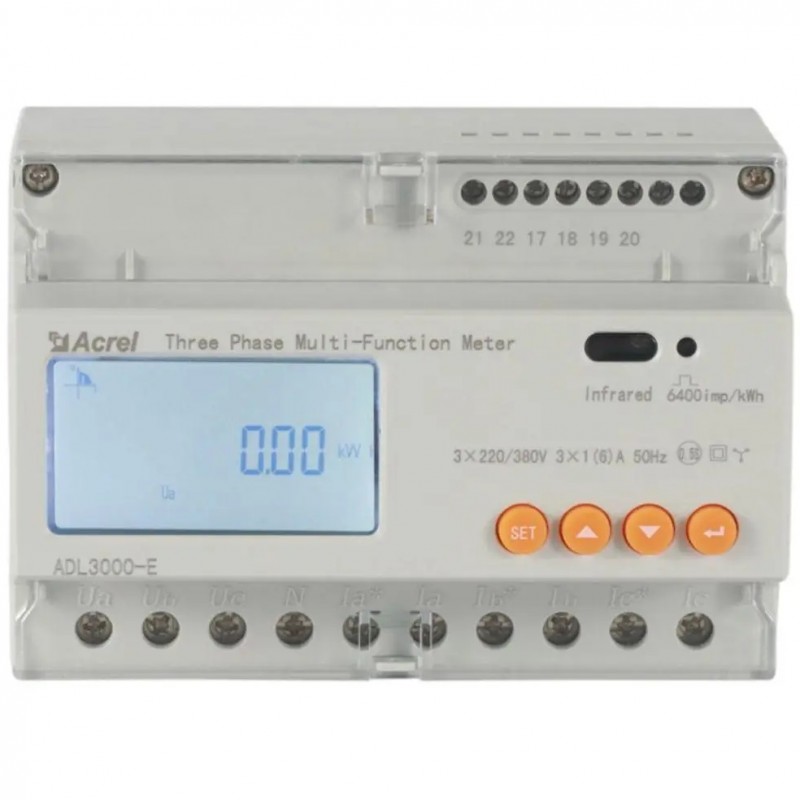

A three-phase DTSD1352 electricity meter can be used in all types of control systems, including SCADA.
Designed for power supply systems, industrial mining enterprises and utilities.
It is distinguished by high accuracy, small dimensions and easy installation. It is used for measuring and managing multiple electrical parameters, providing data for the previous 48 months, on the condition of harmonics, including the 31st harmonic, realizes remote switching and control with switching of input and relay output with the possibility of alarm notification.
Designed for power supply systems, industrial mining enterprises and utilities.
It is distinguished by high accuracy, small dimensions and easy installation. It is used for measuring and managing multiple electrical parameters, providing data for the previous 48 months, on the condition of harmonics, including the 31st harmonic, realizes remote switching and control with switching of input and relay output with the possibility of alarm notification.

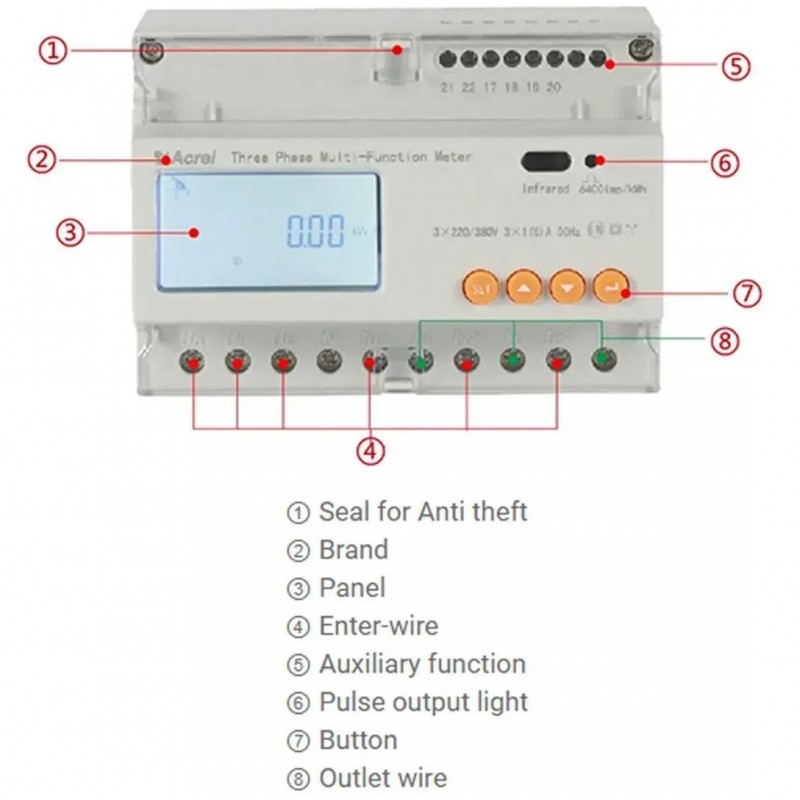

Advantages
- Measurement of a wide range of parameters
- Easy parameter adjustment using 4 buttons
- Multi-tariff - four tariffs
- 4 time zones, 2 time interval channels with 14 intervals per day
- Voltage drop or over voltage warning
Technical data
- Voltage: 3×100V, 3×380V, 3×57.7/100V, 3×220/380V
- Resistance: >2MΩ
- Rated current: 3×1(6)A
- Maximum current: 3×10(80)A
- Deviation: ±0.2%
- Accuracy class: active energy 1, reactive energy 2
- Measuring range: 000000.00~99999999kWh
- Measurement parameters: voltage, current, active, reactive and apparent power factor, power factor, frequency
- Constant: 6400imp/kWh
- Communication protocol: MODBUS-RTU
- Communication interface: RS485, Infrared
- Display: 8 Bit LCD
- Dimensions (LxHxW): 126.5х88.2х69.5mm
* Smart meter DTSD1352 is compatible with all 3P solar inverters SOLIS.
