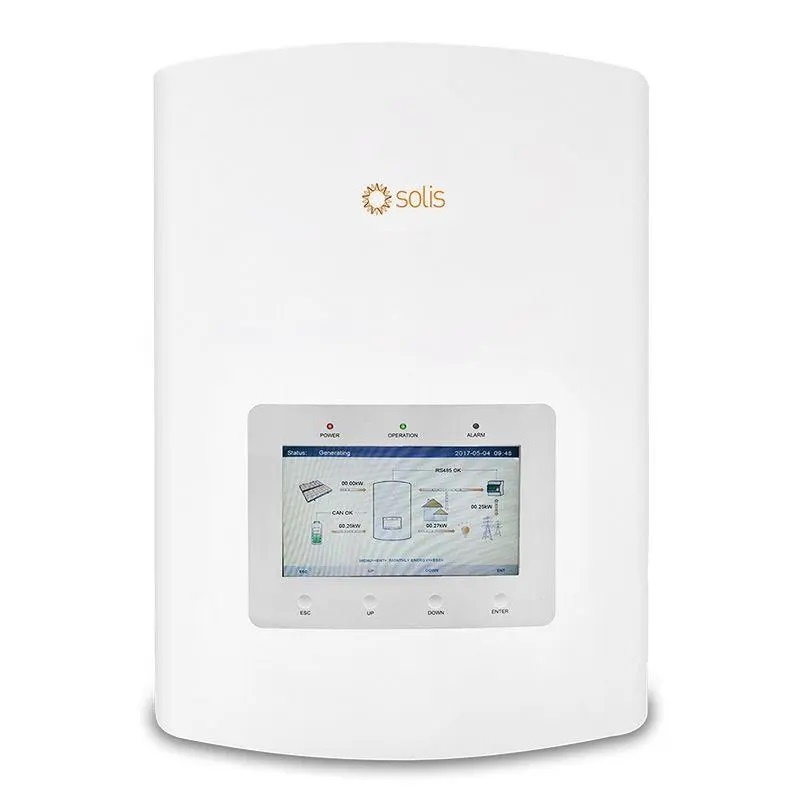

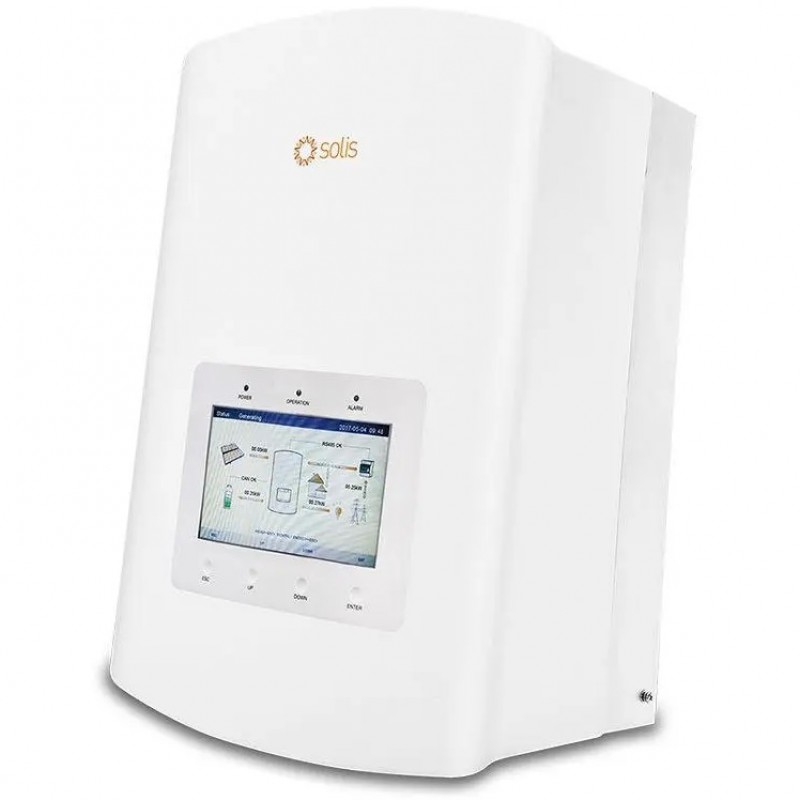

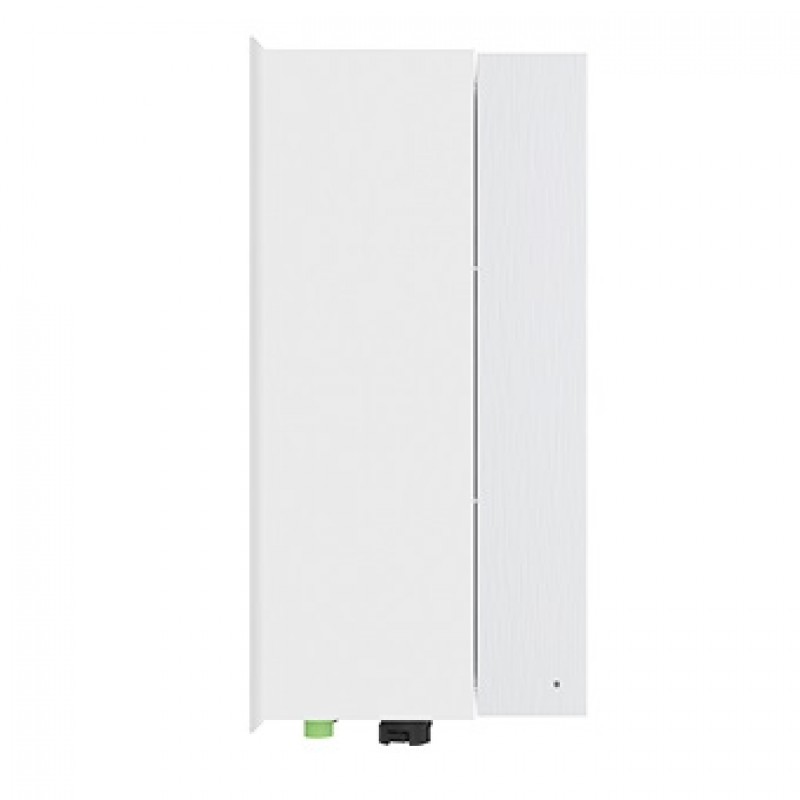

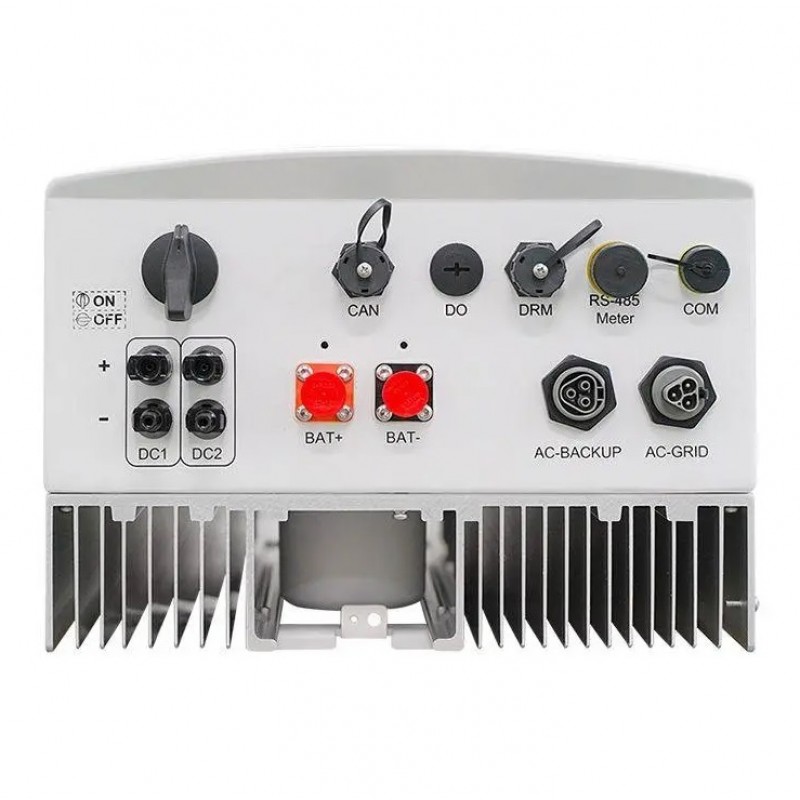

Μονοφασικό Υβριδικό Inverter 3.6KW 5700W SOLIS S5-EH1P3.6K-L 423043
Νέο!
It is an hybrid solar inverter with an integrated charge controller, making it an ideal power generation solution for locations where there is no electrical grid or as a backup power supply.
It requires solar panels, a battery or an electrical grid to operate. The inverter comes with the additional option of purchasing a Wi-Fi plug-and-play device with catalog No 423050 for remote monitoring, which connects to a dedicated input on it.
It can monitor the status of the photo voltaic system from a mobile phone or computer at any time and from anywhere in the world with the SolisCloud app.
The app is compatible with Android and iOS in 10 different languages.
The inverter does not offer the possibility to connect multiple devices in parallel..
It requires solar panels, a battery or an electrical grid to operate. The inverter comes with the additional option of purchasing a Wi-Fi plug-and-play device with catalog No 423050 for remote monitoring, which connects to a dedicated input on it.
It can monitor the status of the photo voltaic system from a mobile phone or computer at any time and from anywhere in the world with the SolisCloud app.
The app is compatible with Android and iOS in 10 different languages.
The inverter does not offer the possibility to connect multiple devices in parallel..
Advantages
- Integrated MPPT controller
- Uninterrupted power supply, 20ms reaction
- AFCI protection, proactively reduces fire risk
- With shifting and peak shaving capabilities friendly to grid
- Higher charge-discharge efficiency, improving the economic benefits
- Multiple working modes to make maximize self-consumption, increase benefit
- 24-hour fully intelligent energy management, Real-time grasp of PV plant status
- Remotely control & upgrade function, making digital power plant maintenance at your fingertips
- Intelligent EMS function, improving battery’s reliability
- Max. string input current 15A
- With high-frequency isolation technology, making system safer and long lifespan
- Compatible with lithium & lead-acid batteries, increased more choice in different markets
- Short circuit protection
- DC reverse voltage protection
- Over voltage protection
- Integrated AFCI arc flash protection reducing the risk of fire
- Remote Wi-Fi monitoring
Technical data
- Number of poles: 1/N/PE
- Rated power: 3600W
- Maximum power of solar panels: 5700W
- Rated output backup power: 3kW
- MPPT operating voltage range: from 90 to 520VDC
- Maximum input voltage: 600VDC
- Number of independent outputs (MPP Trackers) / Strings on each output: 2/2
- THDv (linear load): <2%
- THDi: <2%
- Power reduction at 45°C: ≤ 3%
- Battery voltage: 42-58VDC
- Battery Type: Lithium/Lead Acid
- Charging current: 62.5А
- EU performance: >96,5%
- Display: 7.0”LCD color screen display
- IP65
- Altitude: up to 3000m
- Ambient temperature: from -25 to 60°С
- Weight: 18.3kg
- Dimensions (WxHxD): 333x505x249mm
Certification
• VDE/ EN/ IEC/ CE/ TUV
