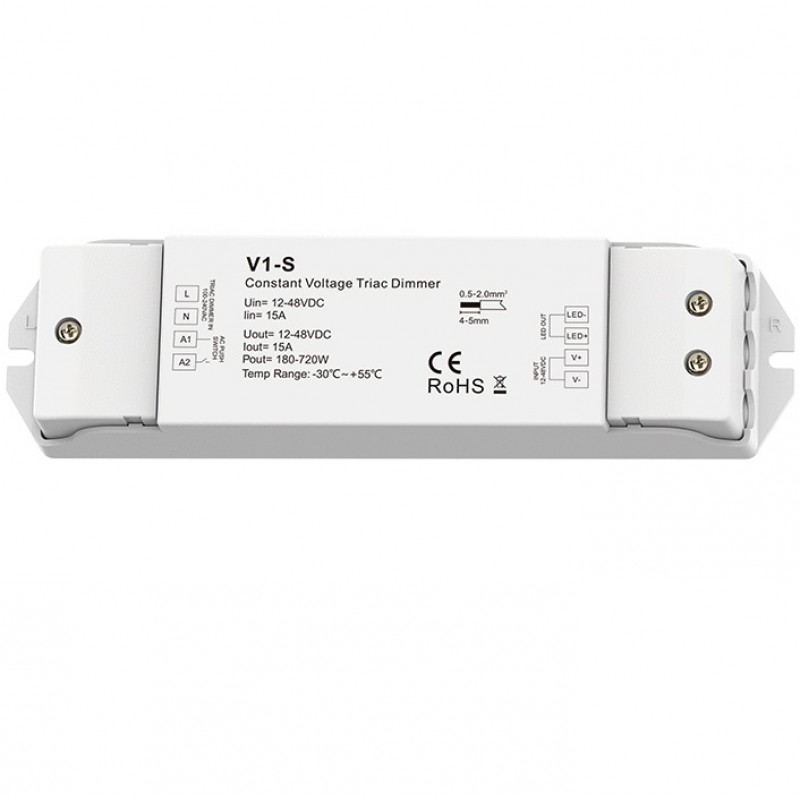

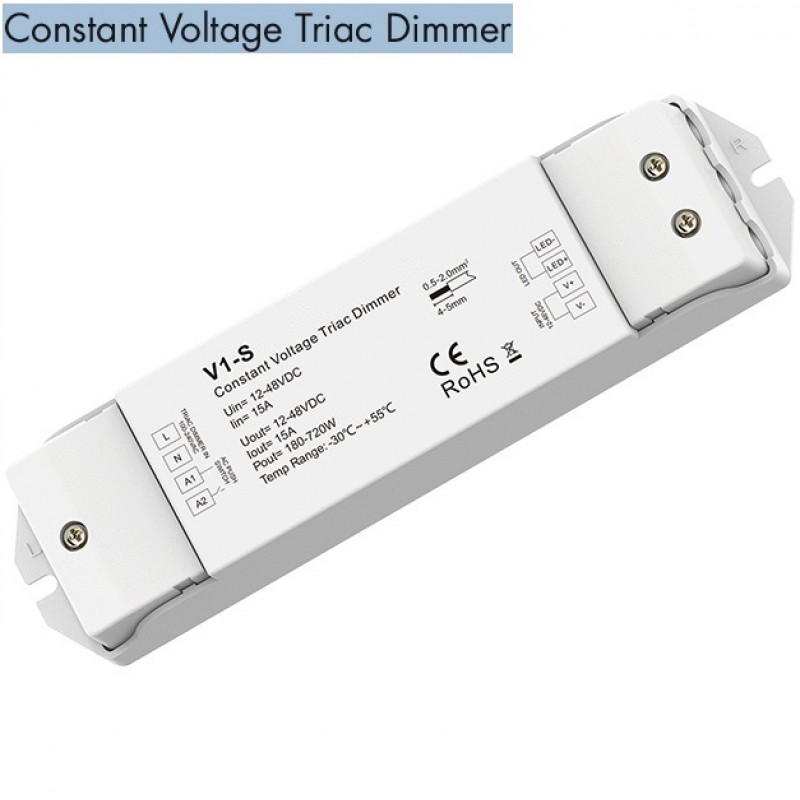

Dimmer AC Triac RF V1-S 1 Channel

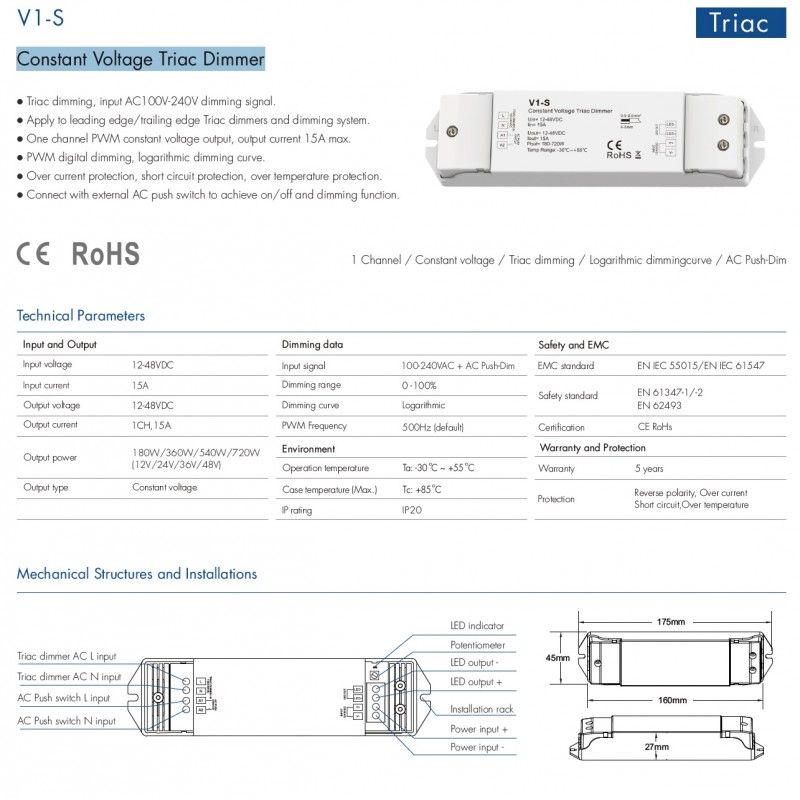

Features
- Triac dimming, input AC100V-240V dimming signal
- Apply to leading edge/trailing edge Triac dimmers and dimming system
- One channel PWM constant voltage output, output current 15A max
- PWM digital dimming, logarithmic dimming curve
- Reverse-phase dimming or forward-phase dimming selectable
- Over current protection, short circuit protection, over temperature protection

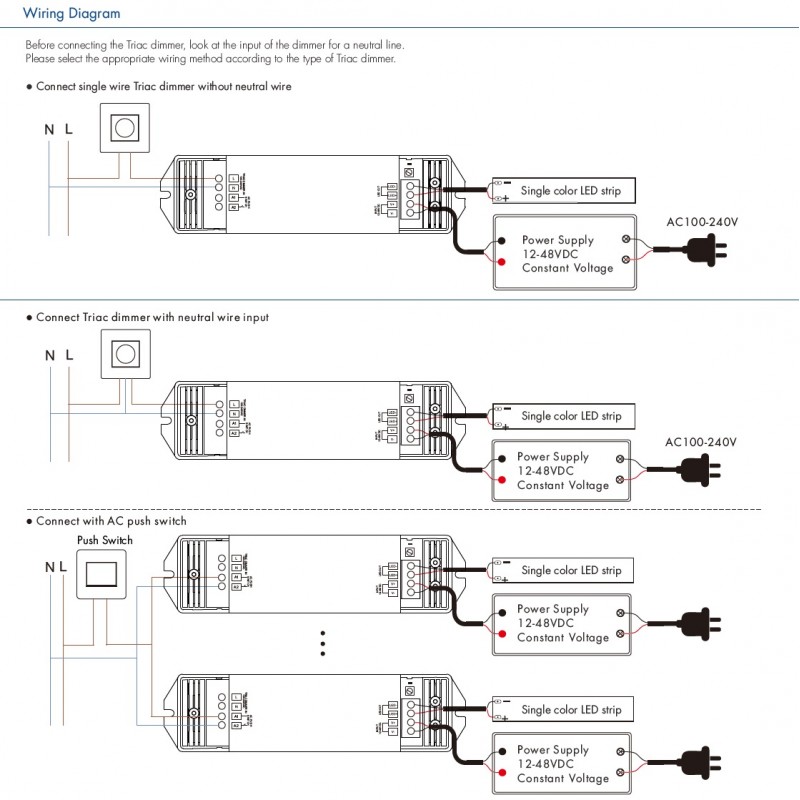

- Connect with external AC push switch to achieve on/off and dimming function
Technical data
- Input voltage: 12-48V DC
- Output voltage: 12-48V DC
- Output current: 1 x 15A
- Output power: 1 x (180-720W)
- Input signal: 100-240V AC + AC Push-Dim
- Dimming range: 0-100%
- Dimming curve: Logarithmic
- PWM Frequency: 500Hz (default)
- Operation temperature: from -30°C to +55°C
- IP degree: IP20
- Size (LxWxH): 178x50x38mm
- Weight: 126gr
Protection
- Reverce polarity
- Over-heat
- Over current
- Short circuit
