Dimmer Ράγας AC Triac & Push Dimmer TR1 1 Channel 195123
Νέο!
-20%
Dimmer Ράγας AC Triac & Push Dimmer TR1 1 Channel
Features
- RF + Push AC phase-cut dimmer, 1 channel output
- To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights
- Digital numeric display, set brightness by buttons
- 0-100% dimming smoothly without any flash
- Reverse-phase dimming or forward-phase dimming selectable
- Light on/off fade time 0 - 20s selectable
- Minimum brightness set from 1% to 40%
- Compatibility with RF 2.4G single zone or multiple zone dimming remote control

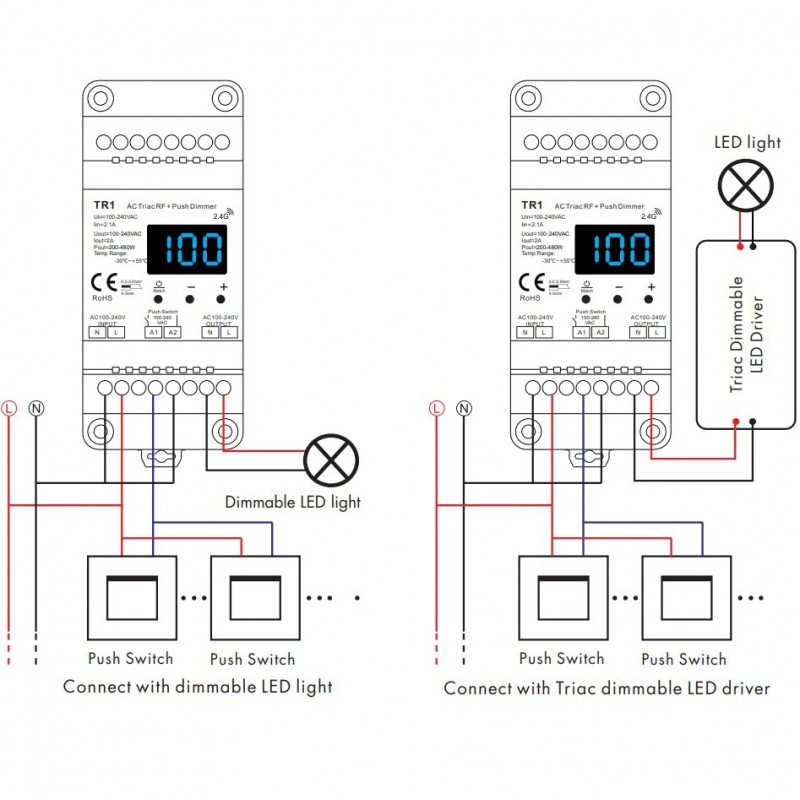

- Connect with external push switch to achieve on/off and 0-100% dimming function.
Technical data
- Input voltage: 100-240V AC
- Output voltage: 100-240V AC
- Output current: 1 x 2A
- Output power: 1 x (200-480W)
- Input signal: 3 Buttons + RF 2.4GHz (Remote control) + AC Push
- Dimming level: 100 levels
- Dimming range: 0-100%
- Operation temperature: from -30°C to +55°C
- IP degree: IP20
Protection
- Recover automatically
- Over-heat
