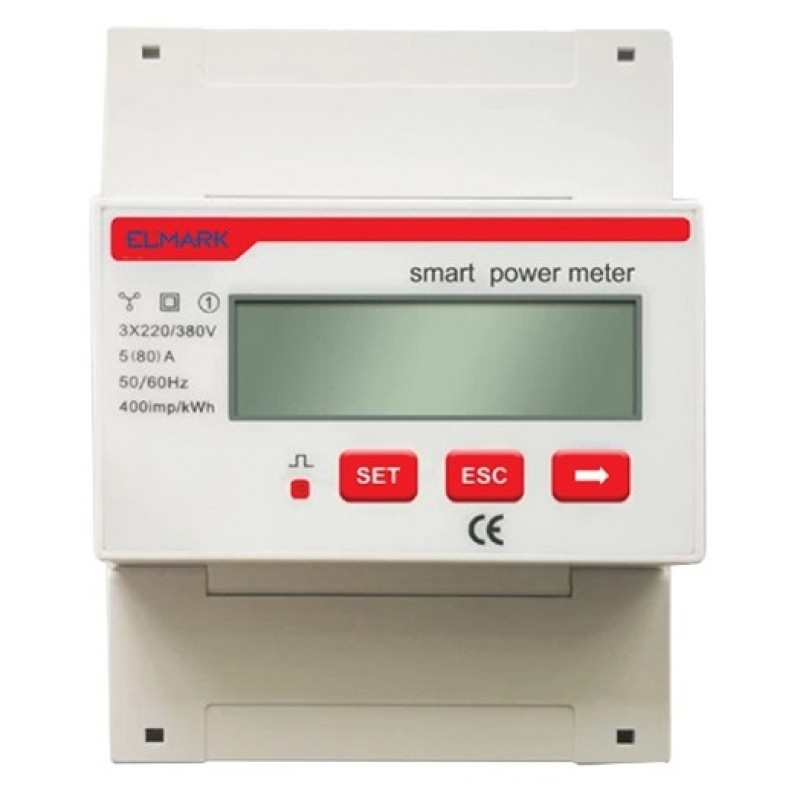

Τριφασικός μετρητής Solar Inverter Elmark ELM- KW130T
ELMARK smart meter is an intelligent control device, which is designed for grid-connected inverters.
Its main function is to measure the generation and consumption, transmit the data to the inverter through RS485 communication, to ensure that the generated power of the inverter is less or equal to the user’s load.
Technical data
- Rated power: 130kW
- Max. power: 150kW
- Accuracy: 1%
- Rated voltage: 230/400V
- Voltage range: 320-440V
- Rated current: 3x200A ( CT max. 3x5000A)
- Max. current: 3x220A ( CT max. 3x5000A)
- Grid type: 3P+N
- Communication: RS485
- IP code: IP20
- Mounting: on DIN-Rail
- Dimensions (LxWxH): 100x70x65mm
* * Smart meter ELM- KW130T is compatible with all 3P solar inverters ELMARK.
