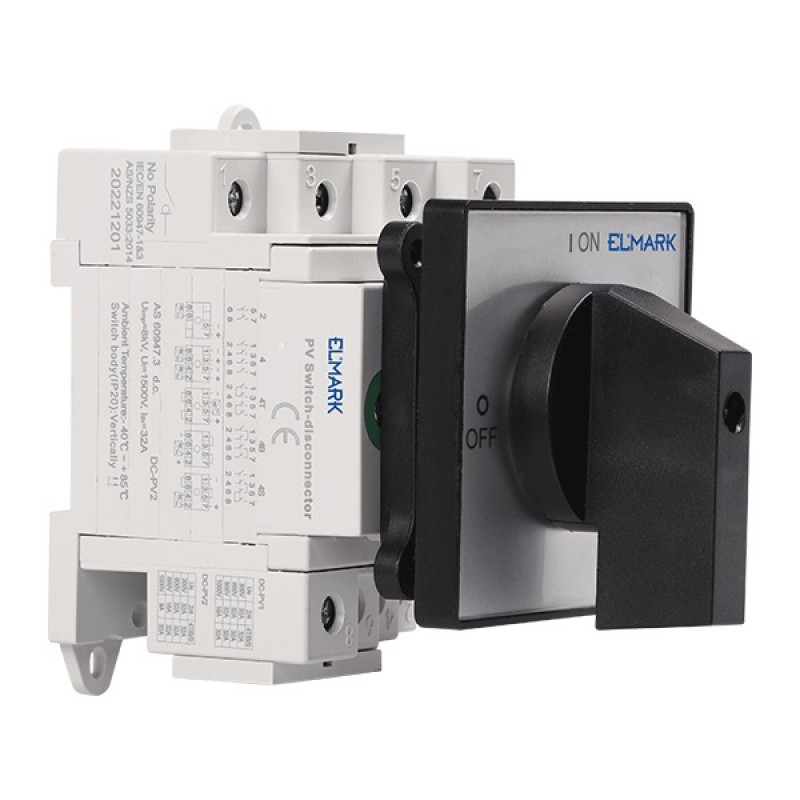

Two Pole DC Isolator 4-Series 2-String IP20
Application
The DC switch is mounted between the solar panels and the inverter and is intended to isolate the PV array during installation or subsequent maintenance.
Technical data
- Rated insulation voltage Ui: 1500V
- Rated current: 32A
- Rated impulse withstand voltage Uimp: 8000V
- Poles: 2P
- Knob position: OFF at 12 hr, ON at 3 hr, C type
- Mechanical life: 10 000 cycles
- Pollution degree: 2
- Over voltage category: III
- Operating temperature: -40 to +70°C
- IP rating of shaft and mounting nut: IP20
- Handle colour: Black
- Mounting: Single hole
- Dimensions LxHxD: 60.2x94.9x64.8
