Μονοφασικό On-Grid Inverter 5KW 7500W SOLIS S6 Mini GR1P5K 423002
Standard grid inverters are the most commonly used type of inverters for trading electricity or producing electricity for own use.
Because they them selves cannot work with batteries, this means that they can only be used during the bright part of the day.
That is, the electricity produced from the solar panels is consumed instantly or returned to the electricity grid for sale.
The inverters come with the additional option of purchasing a Wi-Fi plug-and-play device with code 423050 for remote monitoring, which connects to a dedicated input on them.
It can monitor the status of the photovoltage system from a mobile phone or computer at any time and from anywhere in the world with the SolisCloud app.
The app is compatible with Android and iOS in 10 different languages.
Because they them selves cannot work with batteries, this means that they can only be used during the bright part of the day.
That is, the electricity produced from the solar panels is consumed instantly or returned to the electricity grid for sale.
The inverters come with the additional option of purchasing a Wi-Fi plug-and-play device with code 423050 for remote monitoring, which connects to a dedicated input on them.
It can monitor the status of the photovoltage system from a mobile phone or computer at any time and from anywhere in the world with the SolisCloud app.
The app is compatible with Android and iOS in 10 different languages.
Advantages
- Integrated algorithm for Maximum Power
- Point Tracking (MPPT)
- Integrated EPM (Export Power Manager) function
- Short circuit protection
- DC reverse voltage protection
- Over voltage protection
- Thermal protection
- Network monitoring
- Protection stopping the voltage supply in case of failure of power supply from the mains
- This prevents the occasional pop-up of voltage from the system to the network during operation and while in combined mode
- Remote Wi-Fi monitoring
Technical data
- Number of poles: 1/N/PE
- Rated power: 5KW
- Maximum power of solar panels: 7500W
- MPPT operating voltage range: 80-500VDC/ 90-520VDC/ 80-500VDC/ 90-520VDC
- Maximum input voltage: 600VDC
- Number of independent outputs (MPP Trackers) / Strings on each output: 2/2
- THDv (linear load): <2%
- THDi: <2%
- Power reduction at 45°C: ≤ 3%
- EU performance: >97,1%

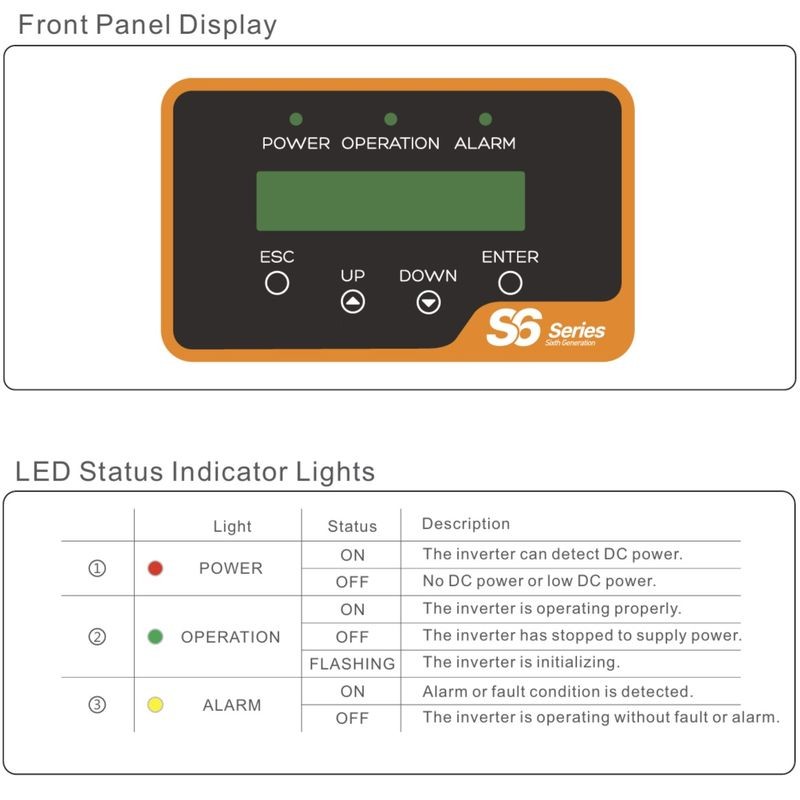

- Display: LCD
- IP code: IP66
- Altitude: up to 4000m
- Ambient temperature: from -25 to 60°С
- Relative humidity: from 0 to 100%
- Weight: 12kg
- Dimension (WxHxD): 310x543x160mm
Certification
• VDE/ EN/ IEC/ CE/ TUV
