Μονοφασικό On-Grid Inverter 8KW 11200W Elmark 423007

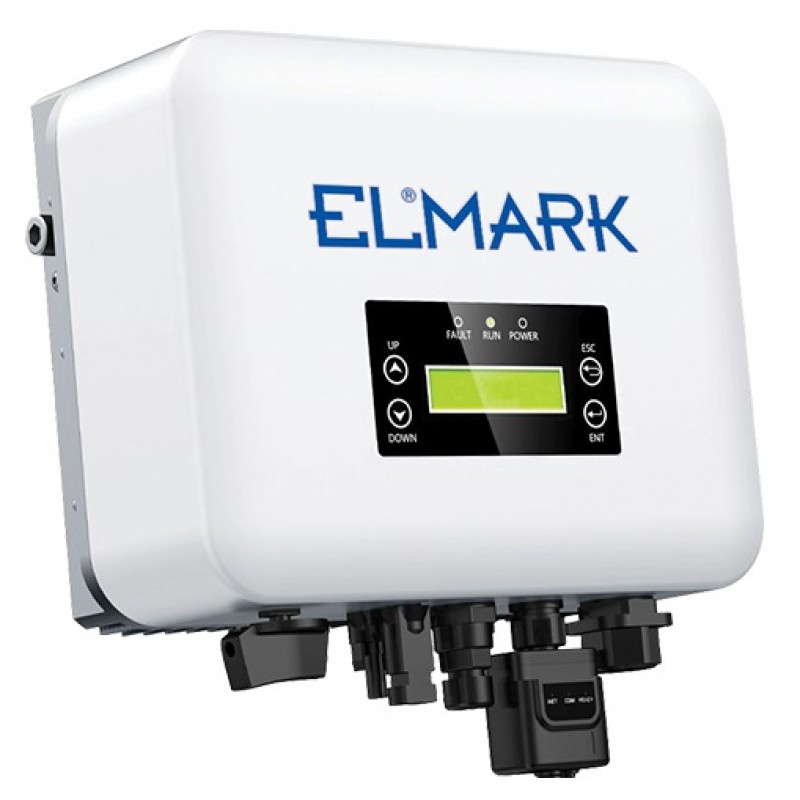

The ELMARK ELM1PON Series Single-phase inverters are designed for residential PV system applications.
All models have uni body housings with aluminum structure which is anodized, increasing durability and effectively prevents corrosion.
Equipped with external inductors, the uni body housings can ensure efficient heat dissipation, which significantly improves the reliability and extends the life of the inverters.
Equipped with external inductors, the uni body housings can ensure efficient heat dissipation, which significantly improves the reliability and extends the life of the inverters.
The inverter menu is activated by sensor touch buttons. Communication implements are via the Wi-Fi module.
Advantages
- Anti-flow: Ant-feed function
- PV oversize: Max. 1.5 time PV oversize capacity
- Multiple intelligent protection
- Smart IV curve scanning
- Wi-Fi Standard Ethernet
- Configuration: Quick and easy configuration via Wi-FI
- PV Reverse polarity protection
- PV Insulation resistance detection
- AC short circuit protection
- AC over current protection
- AC over voltage protection
- Anti-islanding protection
- Residual current detection
- Over temperature protection
- Integrated DC switch
- Surge protection type III
- Smart IV curve scanning
- Active and reactive power compensation, adjust power factor
- High-quality power output and low THDI
Technical data
- Number of poles: 1/N/PE
- Rated power: 8KW
- Maximum power of solar panels: 11200W
- MPPT operating voltage range: 70-550V DC
- Maximum input voltage: 600VDC
- Number of independent outputs (MPP Trackers) / Strings on each output: 2/3
- EU performance: > 98,2%
- Display: LCD
- Modbus: RS485
- IP code: IP65
- Altitude: up to 4000m
- Ambient temperature: from -25 to 60°С
- Relative humidity: from 0 to 100%
- Weight: 17kg
- Size: 510x370x167mm
Certification
- INTERTEK/ VDE/ EN/ CE
