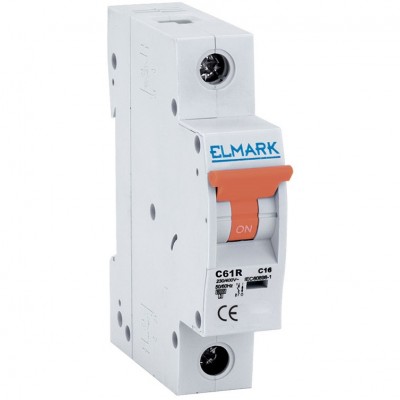

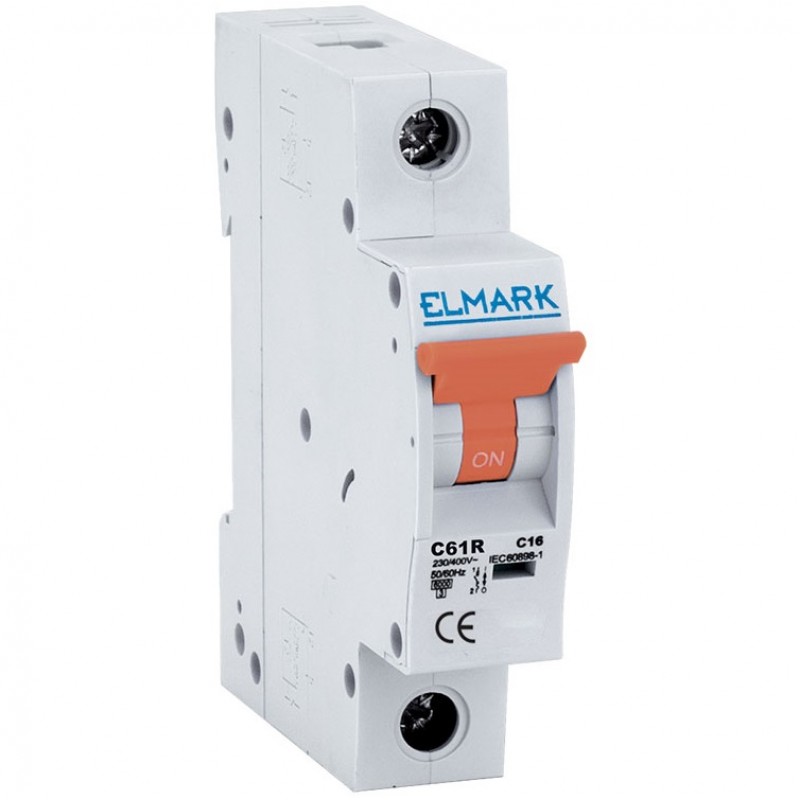

Μικροαυτόματη Ασφάλεια 1P 2A 6kA C61R 230V Τύπου C 41102R
Νέο!
-20%
Μικροαυτόματη ασφάλεια 1P 2A 6kA 230V τύπου C, σειρά C61R.
- Τάση λειτουργίας: 230/400V AC - 50/60Hz
- Αριθμός πόλων: 1
- Ένταση ρεύματος: 2A
- Ικανότητα διακοπής EN 60898: 6kA
- Τύπος τάσης: AC
- Αριθμός κύκλων: 10000
- Στεγανότητα: IP20
- Κατηγορία περιορισμού ρεύματος: 3
- Καμπύλη τύπου: C
- Για άκαμπτους αγωγούς: έως 25mm²
- Για εύκαμπτους αγωγούς: έως 16mm²
Functions
• Protection of the electrical circuits from overload or short circuits of the outer circuit
• It can be used as a device for commutation and control of electrical circuits
• For mounting in residential buildings
• For mounting at a distance from the transformer post from 150 to 850m
• Allows protection of consumers generating short circuit currents up to 6000A
Technical Data
• Rated voltage: 230/400V - 50/60Hz
• Breaking capacity (cycle O-CO) in accordance with standard EN 60 898-1: 6000A
• Rated breaking capacity Ics= 75% Icu
• Isolating voltage:≥2000V
• Electrical wear resistance (number of cycles): 4000
• Mechanical (number of cycles): 10000
• Class of current limiting: 3
• IP code: IP>20
• Tripping curve C – the maximum current release breaks between 5 and 10 In; used to protect main power supply cables and conventional consumers
• Joining terminal: flat (tunnel) screw terminal with composition 1.5 coldly draw-plated plane
• Plastic box – not keeping the burning material nylon PA66, UV rays wear resistance
• Box permitivity strength: >18MV/m
• Abnormal heating wear resistance and fire of the outer parts: 960°C /3s
• Maximum current release containing:
¾ Copper coil - composition: pure copper T2 type
» Resistance: from 0.6 to 180m
» Welding effort: <150 000 N/mm
¾ Bimetal plate - composition: 5J158 to TB180 depending on the current
» Thickness: 0.6mm (up to 40A) and 0.8mm (up to 63A)
¾ Magnetic core - composition: coldly draw-plated metal wire (1Gr18Ni9)
» Thickness: 1.15 to 2.24μm
» Drawing effort: from 200 to 400N/mm
¾ Contact head of the movable contact - composition: silver graphite CAg(5)
» Dimension 3x3x0.8 (up to 40A) and 4x4x0.8 (up to 63A)
¾ Static contact - composition: pure copper T2Y2
» Composition of the contact head: silver graphite CAg(5)
• Power supply (conducting)
¾ Power supply busbar 1P63, 2P63, 3P63
¾ Rigid conductors up to 25 mm2
¾ Flexible conductors up to 16mm2
• Tightening moment: 1.33Nm
Mounting
• Residential electrical installations
• Office buildings
• Retail outlets
Mounting
• Vertical
• DIN-rail
• For mounting in housing or industrial environment without serious interference
• Ambient temperature: -5°C to + 65°C±2° C
